Product Details:
|
| Product Name: | Full HD Endoscope Camera | Resolution: | 1000TVL |
|---|---|---|---|
| Effective Pixels: | 1920(H) X 1080(V) | Material: | Plastic, Metal, PCBA, PVC, Glass |
| Application: | ENT, Heysteroscope, Laparoscopic Surgery | Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording |
| Lens Mount: | C-Mount | Scanning Mode: | Progressive |
| Waterproof: | Camera Head IPX7 Waterproof | ||
| Highlight: | Otoscope Full HD Endoscope Camera,Laparoscopy Full HD Endoscope Camera,1000TVL USB Video Endoscope Camera |
||

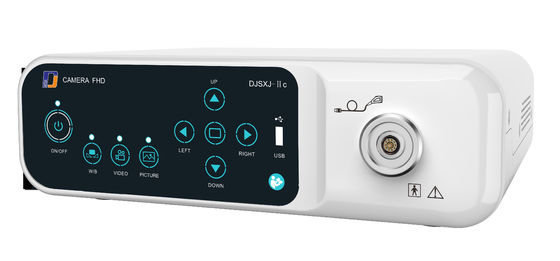

DJSXJ-IIc Full HD Endoscope Camera

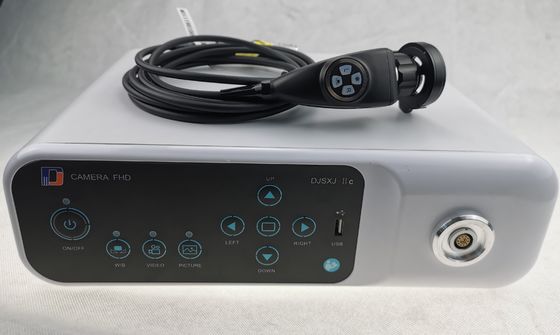

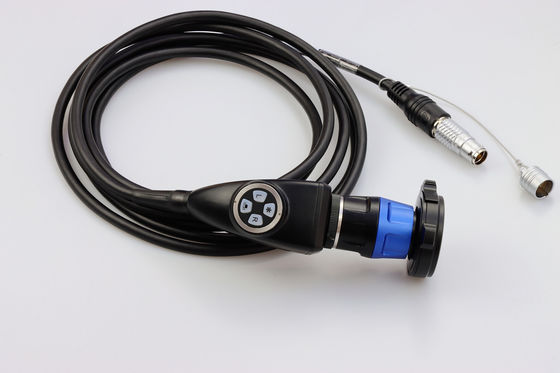

1080P Medical Endoscope Camera includes camera control unit, camera head and optical adapter.
(Zoom adapter is optional.)
Our Full HD endoscope camera system, the perfect solution for high-quality surgical imaging. This system features 1920(H) x 1080(V) effective pixels ensuring every surgical procedure is captured in full HD for clear visualization and precision. With surgical definition, you can perform your duties with ease, knowing that you are fully equipped to deliver exceptional quality care to your patients.
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |

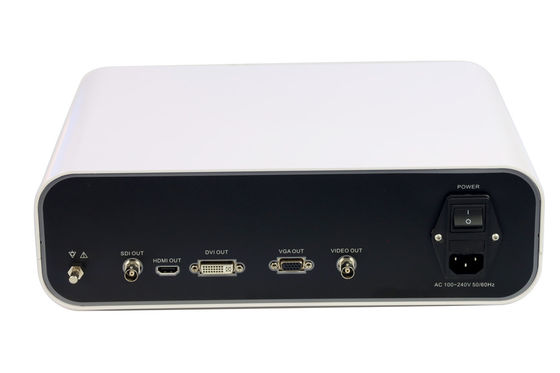

| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Recording Function | Support U disk or mobile hard disk for 1080P recording |
| Video Storage Format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4KG |
