Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Effective Pixels: | 1920(H) X 1080(V) |
|---|---|---|---|
| Resolution: | 1000TVL | White Balance: | Manual |
| Handle Button: | Picture, Video, White Balance | Exposure: | Auto / Manual |
| Photometry: | Average, Peak And Area Photometry | Weight: | 4kgs |
| High Light: | Arthroscopy Full HD Endoscope Camera,Manual Full HD Endoscope Camera,Picture Endoscope Camera System |
||

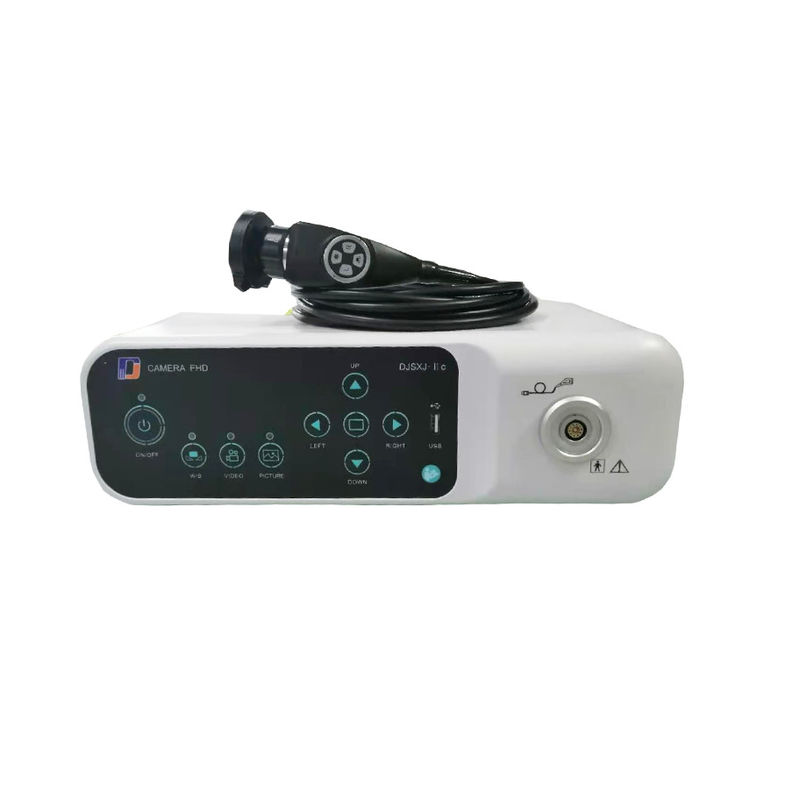

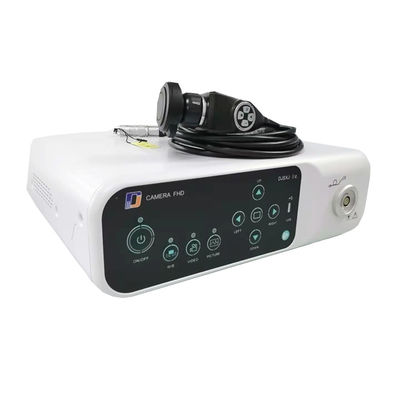

Full HD Endoscope Camera System for Arthroscope DJSXJ-IIc
Arthroscopy is a surgical procedure doctors use to look at, diagnose, and treat problems inside a joint. Arthroscopy use with Dajing Full HD Endoscope Camera System.It’s a minor surgery and is done on an outpatient basis. You can have arthroscopy on any joint. Most often, it’s done on the knee,shoulder,elbow,ankle, hip, or wrist.
During the procedure, your doctor will insert a tool called an arthroscope into your joint through several small cuts to see how much damage is in the joint. They can also repair many injuries during arthroscopy.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Image processing | Noise reduction algorithm(2D/3D), color density 30 levels(user adjustable), edge enhancement, contrast adjustment, image magnification(16 times digital magnification) blood vessel enhancement, anti-fog function, strong light suppression |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4kgs |
