Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Unit Cell Size: | 3.75 Umx3.75um |
|---|---|---|---|
| Effective Pixels: | 1920(H) X 1080(V) | Resolution: | 1000TVL |
| Lens Mount: | C-Mount | Waterproof: | Camera Head IPX7 Waterproof |
| Scanning Mode: | Progressive | Illumination Ref.: | 3000K-8000K |
| Highlight: | Medical Full HD Endoscope Camera,Full HD Endoscope Camera System,waterproof Endoscope Camera |
||

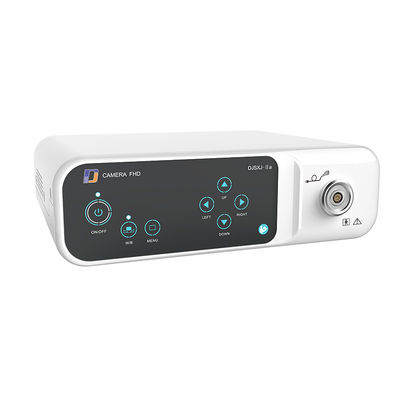

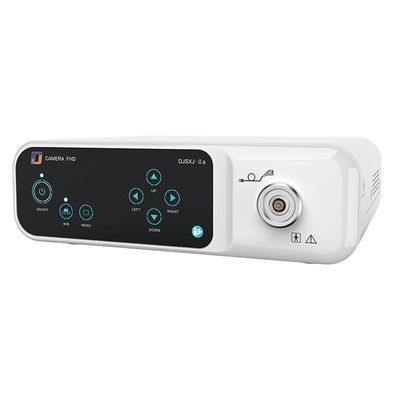

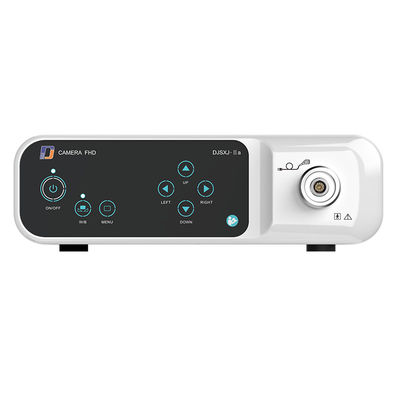

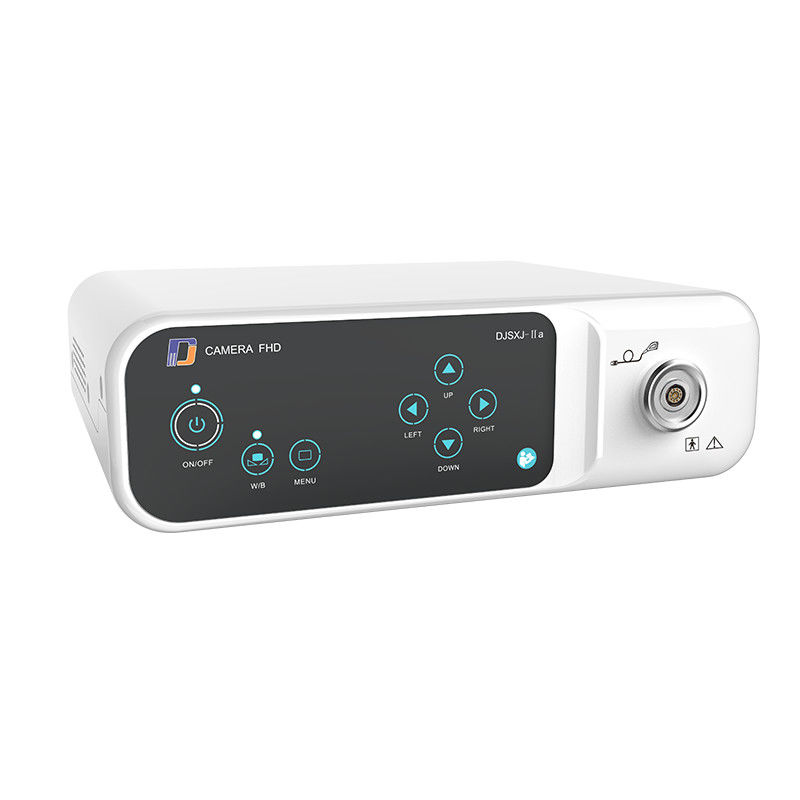

Medical Full HD Endoscope Inspection Camera DJSXJ-IIa
Medical Full HD Endoscope Inspection Camera is compatible with all kinds endoscope inspection and surgery in ENT, Gynecology, Orthopaedics, Urology, Proctology etc.
Delicate Endoscope Images, Richer color gamut, FPGA image processing algorithms
The camera module,image processing chip and optical design adaptor the newest 1080P technology. The ergonomic exterior struction design and light weight effectively reduce the fatigue of doctors during long term operation.
1080P Medical Camera include camera,camera head and optical coupler.
Zoom coupler is optional.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Exposure | Auto/Manual |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Image processing | Noise reduction algorithm(2D/3D), color density 30 levels(user adjustable), edge enhancement, contrast adjustment, image magnification(16 times digital magnification) blood vessel enhancement, anti-fog function, strong light suppression |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
