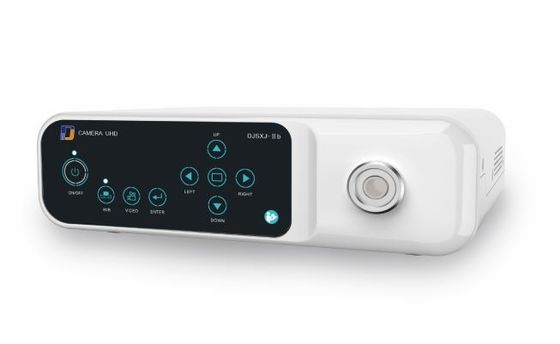

Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
|---|---|---|---|
| Resolution: | 1800TVL | Lens Mount: | C-Mount |
| Language: | Chinese,English | Size: | 360mm X 285mm X 120mm |
| S/N: | >58dB | Output Signal: | 4K: HDMI2.0 ( 3840 X 2160P 60Hz ) FHD: HDMI, LAN, DVI (1080P 60Hz ) |
| Highlight: | 4K Medical Endoscope Video Camera,Laparoscopic Arthroscopy Endoscope Video Camera,1800TVL 4K Endoscope Camera |
||
Arthroscopic surgery is a minimally invasive orthopedic procedure used to diagnose and treat joint problems.
Arthroscopic surgery requires smaller incisions than open surgery, recovery times tend to be shorter.
The most commonly performed arthroscopic surgeries are:
Knee arthroscopy
Shoulder arthroscopy
Hip arthroscopy
Ankle arthroscopy
Elbow arthroscopy
Wrist arthroscopy
Such procedures may be done to help diagnose or treat a variety of conditions.
| Technical Data | |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 um x 2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Illumination Ref | 3000k - 8000k |
| Min.Sensitivity | 20Lx F1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| White Balance | Manual |
| Language | Chinese, English |

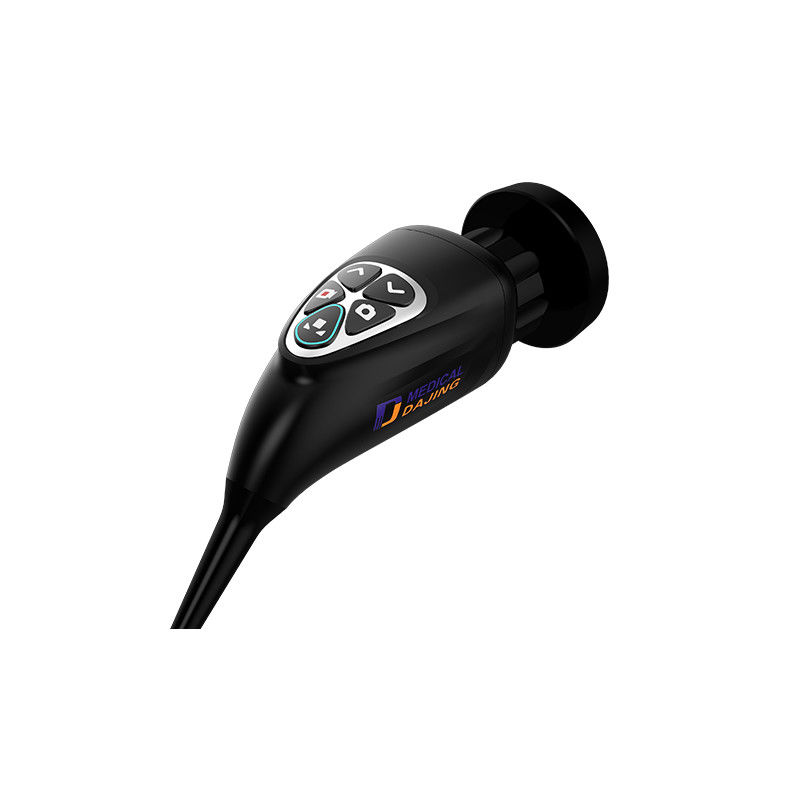

| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~ +40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Weight | 4kgs |
