Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
|---|---|---|---|
| Resolution: | 1800TVL | Lens Mount: | C-Mount |
| Waterproof: | Camera Head IPX7 Waterproof | Power Supply: | AC100-240V 50/60 HZ |
| S/N: | >58dB | Illumination Ref.: | 3000K-8000K |
| Highlight: | Medical 4K Endoscope Camera,waterproof 4K Endoscope Camera,4k endoscope |
||

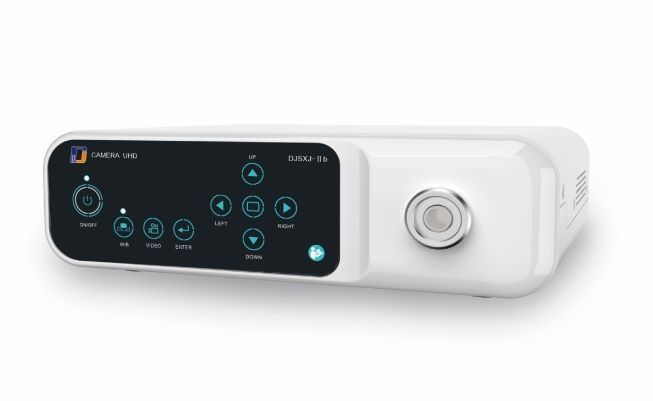

Ultra 4K Endoscope Camera DJSXJ-IIb
Ultra 4K Endoscope Camera is a surgical endoscope system incorporating innovative 4K technology (3840 x 2160 pixels ) to further improve the accuracy and safety of endoscopic surgery.
4K means four times as many pixels as conventional Full HD imaging systems.
| Technical Data | |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 umx2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Exposure | Auto/Manual |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | 12G-SDI 75Ω |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4kgs |
