Product Details:
|
| Touch Screen: | 10 Inch | Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor |
|---|---|---|---|
| Effective Pixels: | 3840(H) X 2160(V) 60Hz | White Balance: | Manual |
| Language: | Chinese,English | Exposure: | Auto / Manual |
| Image Gamma: | 0.45, 0.55, 0.65, 0.75 | Lens Mount: | C-Mount |
| Waterproof: | IPX7 Waterproof | ||
| Highlight: | Ultra 4k Endoscopy Camera,10.2Inch Touched Display Endoscopy Camera,Laparoscopy Operation 4K Endoscope Camera |
||

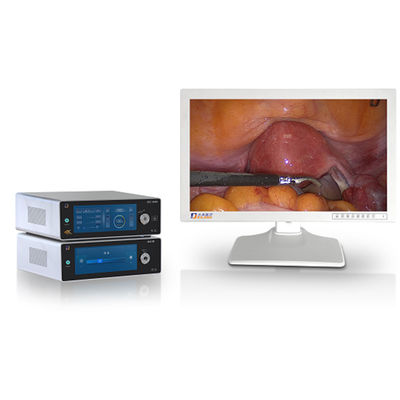

Laparoscopy operation 10.2 inch touched display medical Ultra 4k endoscopy camera
Optimized settings for laparoscopy, gynecology, thoracoscope, ENT, cystoscope and fiberscopes.
4K UHD imaging (3840 x 2160, 60fps)
BT.2020, large UHD color space
Image / video capturing via USB (Full HD)
4K UHD: camera head 4K UHD optical coupler
Color Enhancement – for the vessels and the tissue structure
Grid removal – reduces the honeycomb structure of endoscopes image bundle
| Technical Data | |
| Dispaly | 10 inch |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 umx2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | 12G-SDI 75Ω |
| Output Signal | HDMI2.0, 12G SDI, 3G SDI*4, DVI, 3G-SDI, |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Power Supply | AC100-240V 50/60 HZ |
