Product Details:
|
| Image Sensor: | 1/1.9” Sony IMX185 CMOS Sensor | Unit Cell Size: | 3.75 Um X 3.75 Um |
|---|---|---|---|
| Effective Pixels: | 1920 ( H ) X 1080 (V) | Resolution: | 1000 TVL |
| Photometry: | Average, Peak And Area Photometry | Exposure: | Auto / Manual |
| S/N: | >54dB | Image Gamma: | 0.45, 0.55, 0.65, 0.75 |
| Highlight: | Medical Image Capture Controller,1000TVL Image Capture Controller,IPX7 video capture controller |
||

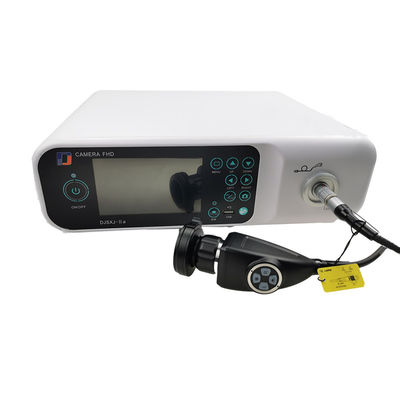

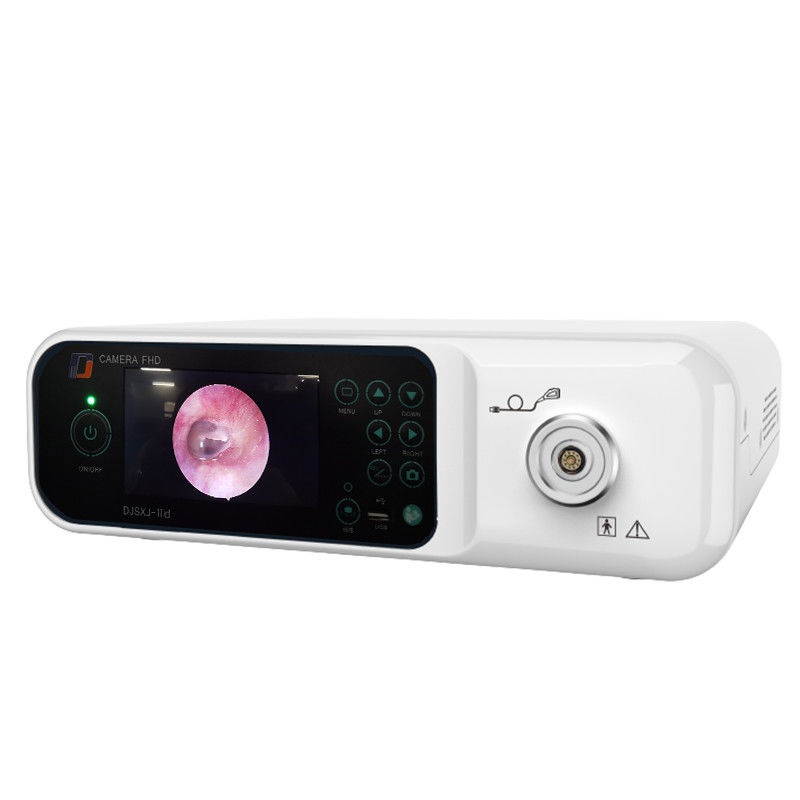

Medical Full HD Image Capture Controller DJSXJ-IId
We are also offer OEM service for Medical Full HD Image Capture Controller.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Display screen | 5.0 inch, Resolution 800 x 480 |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| Handle Button | Picture, Video, White balance |
