Product Details:
|
| Image Sensor: | 1/1.9” Sony IMX185 CMOS Sensor | Effective Pixels: | 1920 ( H ) X 1080 (V) |
|---|---|---|---|
| Resolution: | 1000 TVL | Photometry: | Average, Peak And Area Photometry |
| Exposure: | Auto / Manual | S/N: | >54dB |
| Image Gamma: | 0.45, 0.55, 0.65, 0.75 | Shutter: | Auto Range 1/50 -1/4000 |
| High Light: | White Full HD Endoscope Camera,CE Full HD Endoscope Camera,1000TVL Image Capture Controller |
||

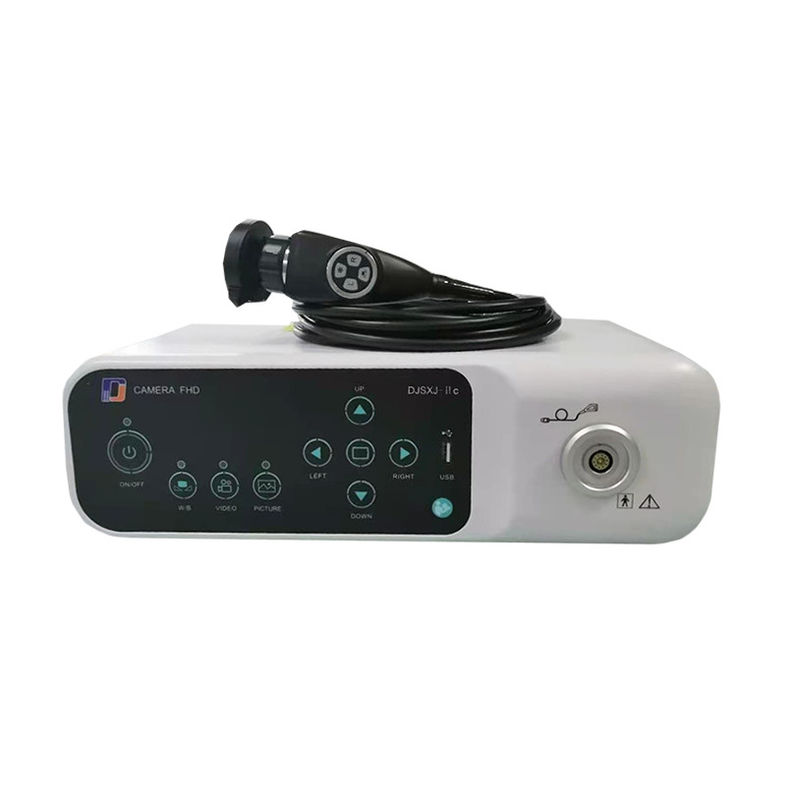

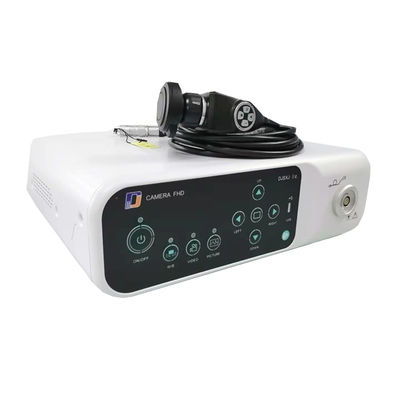

Medical Full HD Image Capture Controller DJSXJ-IIc
Full HD 1080p Endoscope Camera System DJSXJ-IIc are used in the majority of surgical endoscopic applications and enable endoscopists to visualize the surface of organs, their vessels, or pathological changes without large incisions of the body and delivering a view even more clear than with the naked eye. The main design criteria are the viewing angle, depth-of-field, magnification, image brightness, image quality, distortion, and image size, which have to be appropriately balanced. Rigid endoscopes are commonly used in minimally invasive surgical procedures like rhinoscopy (nose), cystoscopy (urinary bladder), and laparoscopy (abdomen).
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Weight | 4kgs |
