Product Details:
|
| Image Sensor: | 1/1.9” Sony IMX185 CMOS Sensor | Unit Cell Size: | 3.75 Um X 3.75 Um |
|---|---|---|---|
| Effective Pixels: | 1920 ( H ) X 1080 (V) | Resolution: | 1000 TVL |
| Photometry: | Average, Peak And Area Photometry | Exposure: | Auto / Manual |
| S/N: | >54dB | Image Gamma: | 0.45, 0.55, 0.65, 0.75 |
| Highlight: | Full HD 1080p Endoscope,waterproof 1080p Endoscope Camera,Manual Endoscope Camera System |
||

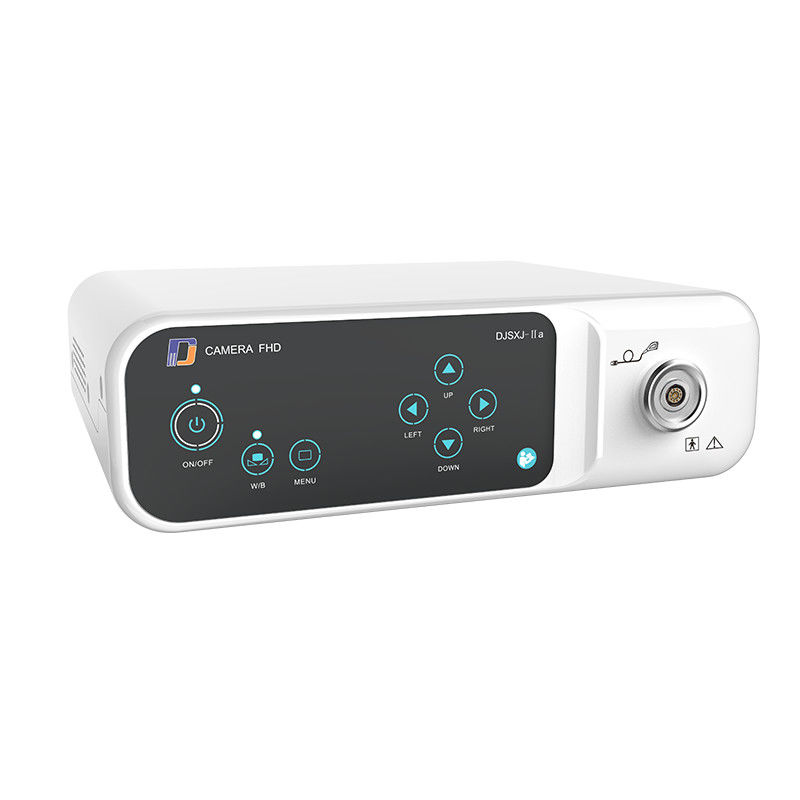

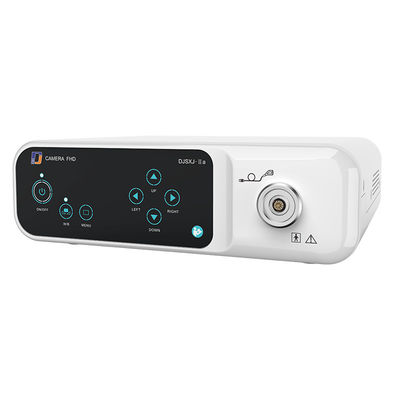

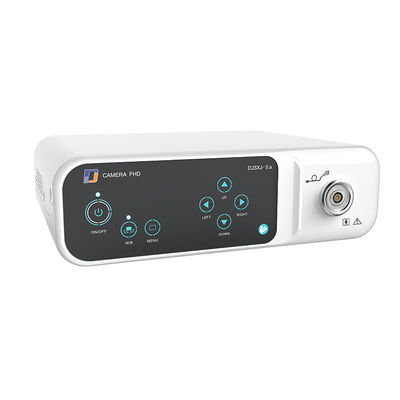

Full HD 1080p Endoscope Camera System DJSXJ-IIa
Endoscopy is a technique that involves inserting a tube attached to a camera (endoscope) to view the inside of an organ or cavity. This instrument is inserted through a small incision or through natural openings such as the vagina or anus. Until recently, such procedures were used for diagnostic purposes only. However, nowadays, endoscopic methods also allow a correct treatment of pathologies in a less aggressive way. Gynecological endoscopy does not require hospitalization, allowing the patient to return home the same day of the intervention. Within it, two modalities can be distinguished: hysteroscopy and laparoscopy.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Weight | 4kgs |
