Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Effective Pixels: | 1920(H) X 1080(V) |
|---|---|---|---|
| Resolution: | 1000TVL | White Balance: | Manual |
| Exposure: | Auto / Manual | Image Gamma: | 0.45, 0.55, 0.65, 0.75 |
| Handle Button: | Picture, Video, White Balance | Weight: | 4kgs |
| Highlight: | Full HD Medical Endoscope Camera,Manual Medical Endoscope Camera,Arthoscope Endoscope Camera System |
||

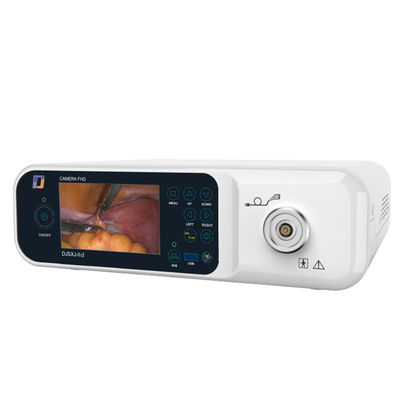

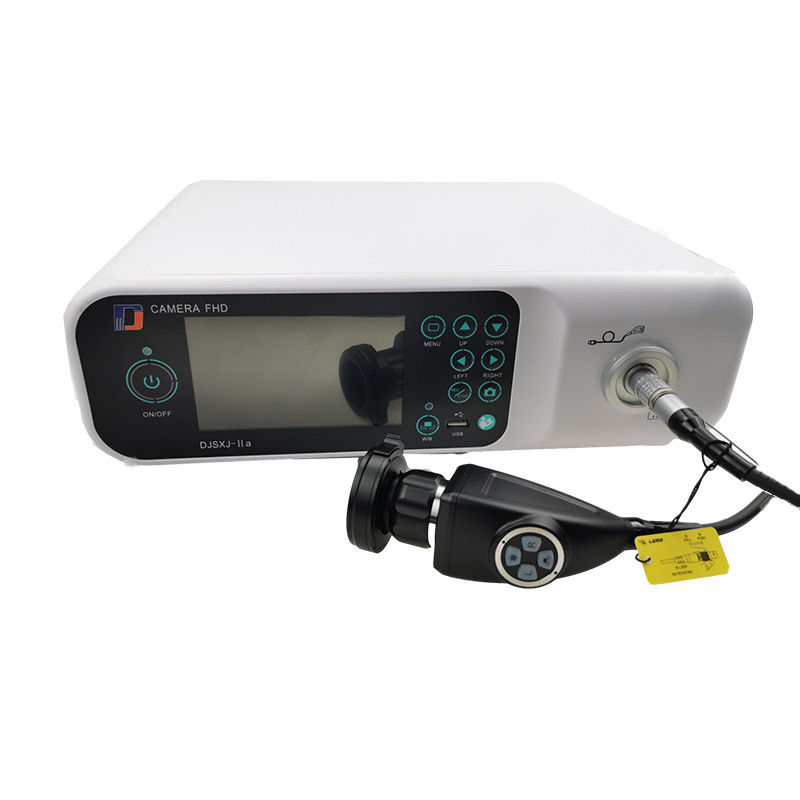

Full HD Endoscope Camera System for Arthroscope DJSXJ-IId
Arthroscopy is often done as day surgery. Depending on the joint involved and your health, you might have some form of local anaesthetic, or perhaps a general anaesthetic.
The surgeon will make a tiny cut near the joint and insert the arthroscope. Arthroscope is connected with DAJING Full HD Endoscope Camera System.The images taken from inside your joint will be shown on a video monitor. The surgeon might be able to see what is causing your problem.
If surgery is needed, the surgeon may make a few more narrow cuts and insert surgical instruments to fix particular types of joint problem.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| S/N | >54dB |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Display screen | 5.0 inch, Resolution 800 x 480 |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Weight | 4kgs |
