Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Effective Pixels: | 1920(H) X 1080(V) |
|---|---|---|---|
| Resolution: | 1000TVL | Lens Mount: | C-Mount |
| Display Screen: | 5.0 Inch, Resolution 800 X 480 | Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording |
| Video Storage Format: | MP4 Format For H.264/H.265 ENCODING STORAGE | Working Temperature: | 0℃〜+40℃ |
| Highlight: | FHD Electronic Endoscope,electronic endoscope Camera,1000TVL Medical endoscope Camera |
||

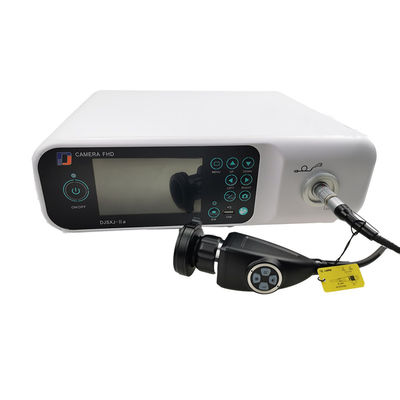

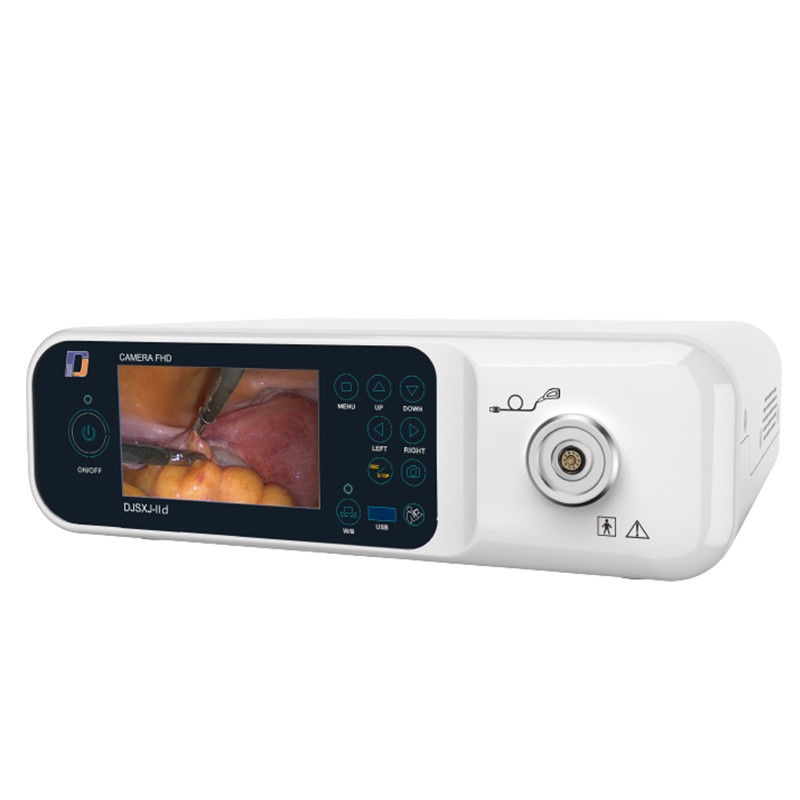

Medical FHD Endoscope Camera System DJSXJ-IId
Medical FHD Endoscope Camera System DJSXJ-IId provide the basis for the premium-quality images.
The underlying camera board has been designed and developed according to our specifications, which permits the differentiated setting of parameters and enables radical adjustments to the image generation system.
We provide you with camera systems that are based on state-of-the-art technologies and can be modified with individual settings.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Exposure | Auto/Manual |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Illumination Ref | 3000k-8000k |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Display screen | 5.0 inch, Resolution 800 x 480 |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Power Supply | AC100-240V 50/60 HZ |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4kgs |
