Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Color: | White |
|---|---|---|---|
| Effective Pixels: | 3840(H) X 2160(V) 60Hz | Scan Mode: | Progressive |
| Waterproof: | Camera Head IPX7 Waterproof | Resolution: | 1800 TVL |
| Dimension: | 360mm X 285mm X 120mm | White Balance: | Manual |
| Working Temperature: | 0℃~+40℃ | ||
| Highlight: | Surgery 4K Endoscope Camera,Progressive 4K Endoscope Camera,ENT Endoscope |
||

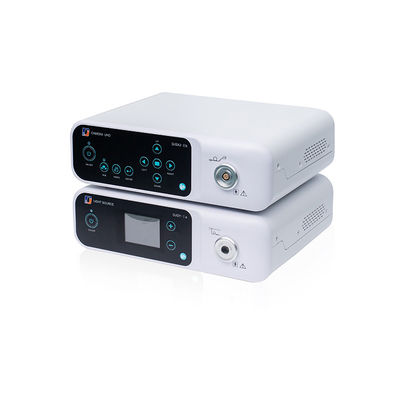

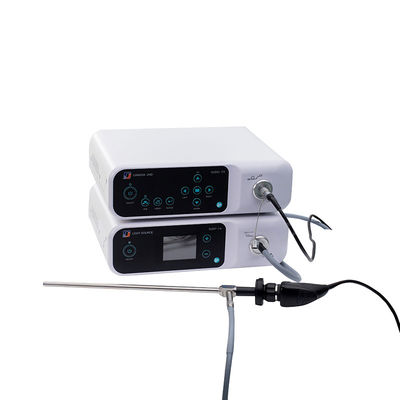

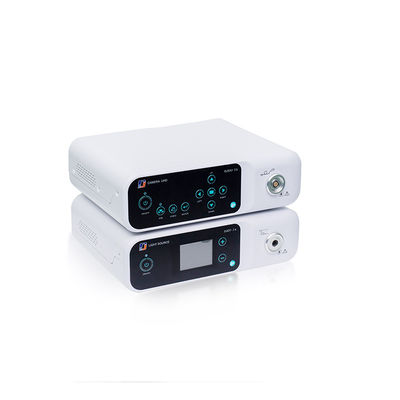

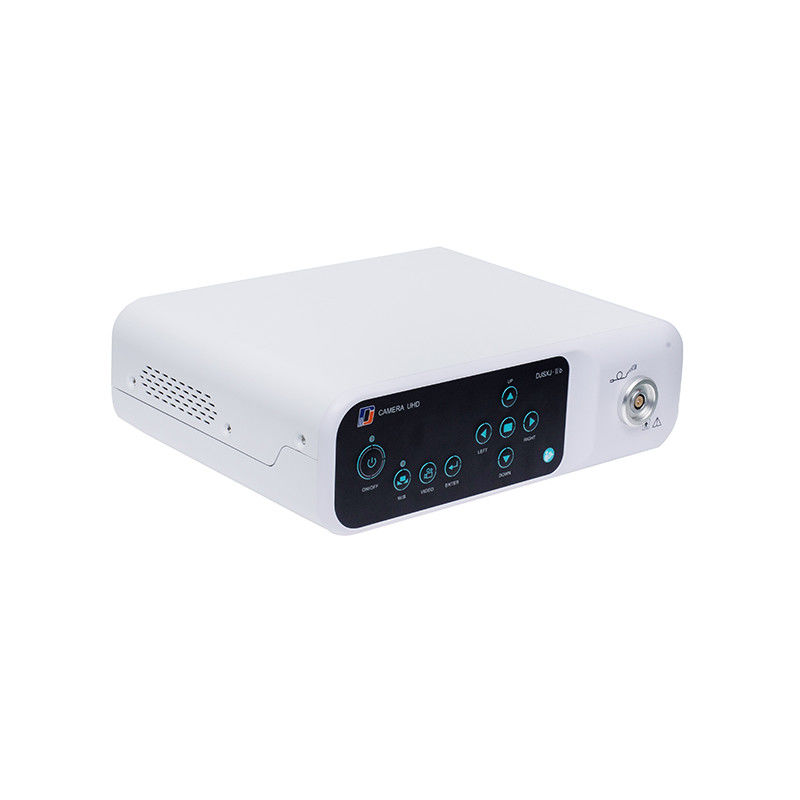

Ultra 4K Endoscope Camera System DJSXJ-IIb for ENT surgery
Endoscopic sinus surgery is a procedure used to remove blockages in the sinuses.
These blockages may cause pain, recurring infections, drainage, loss of smell or impaired breathing.
Sinus surgery is used to relieve symptoms associated with:
Sinusitis and nasal polyps
Nasal congestion
Nasal obstruction
Nasal tumors
Recurrent or chronic sinus infections
Goals of Endoscopic sinus surgery
This procedure is designed to improve the drainage of the sinuses and to improve airflow through the nose.
| Technical Data | |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2um x 2um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto / Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k - 8000k |
| Min.Sensitivity | 20Lx F1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| Handle Button | Picture, Video, White balance |
| Power Supply | AC100-240V 50/60 HZ |
