Product Details:
|
| Touch Screen: | 10 Inch | Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor |
|---|---|---|---|
| Effective Pixels: | 3840(H) X 2160(V) 60Hz | White Balance: | Manual |
| Language: | Chinese,English | Exposure: | Auto / Manual |
| Image Gamma: | 0.45, 0.55, 0.65, 0.75 | Lens Mount: | C-Mount |
| Highlight: | 4K laparoscopic camera,Ultra laparoscopic camera,Laparoscopic Camera System |
||

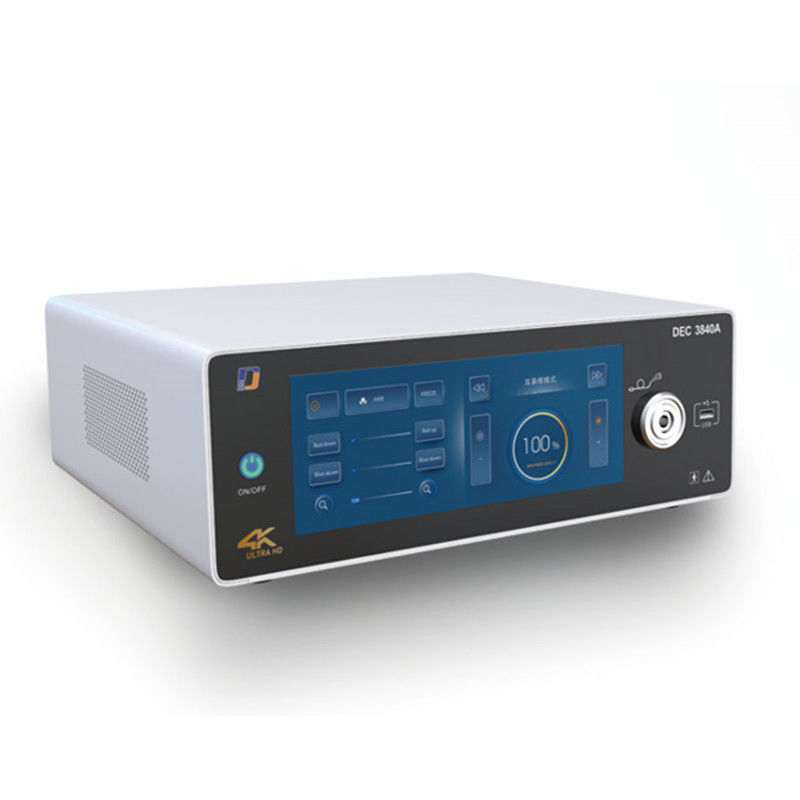

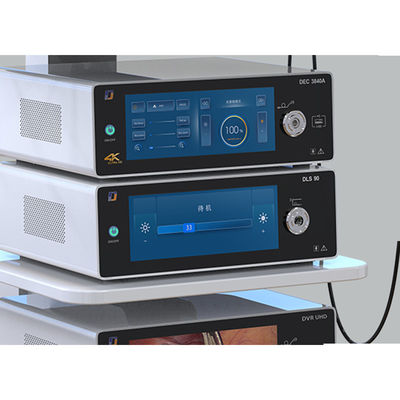

Ultra 4K Endoscope Camera System DEC3840B for laparoscopic surgery
Laparoscopy may be used to check an abdominal injury. It may also be used to determine a stage of cancer for an abdominal organ.
It can see how much internal bleeding you have. It can also see where the injury is and how deep it is.
Centerpiece of a high-end 4K UHD endoscopic camera system.
4K and Full HD outputs for maximum flexibility.
Optimized settings for laparoscopy, gynecology, thoracoscope, ENT, cystoscope and fiberscopes.
4K UHD imaging (3840 x 2160, 60fps)
BT709, large UHD color space
Image / video capturing via USB (Full HD)
4K UHD: camera head 4K UHD optical coupler
Color Enhancement – for the vessels and the tissue structure
Grid removal – reduces the honeycomb structure of endoscopes image bundle
| Technical Data | |
| Dispaly | 10 inch |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 umx2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | 12G-SDI 75Ω |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Power Supply | AC100-240V 50/60 HZ |
