Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
|---|---|---|---|
| Resolution: | 1800TVL | Lens Mount: | C-Mount |
| Language: | Chinese,English | Working Temperature: | AC100-240V 50/60 HZ |
| LED Light Source: | 90w | Monitor: | 32/55 Inch Display Screen |
| Highlight: | 4K Medical Borescope,Ultra Medical Borescope,Medical Endoscope |
||

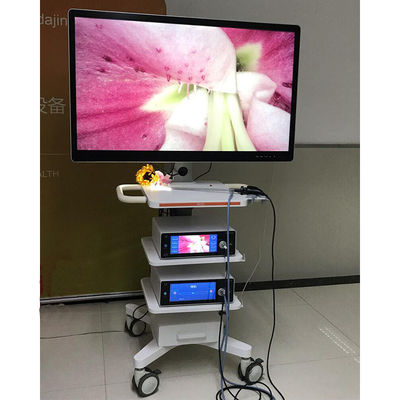

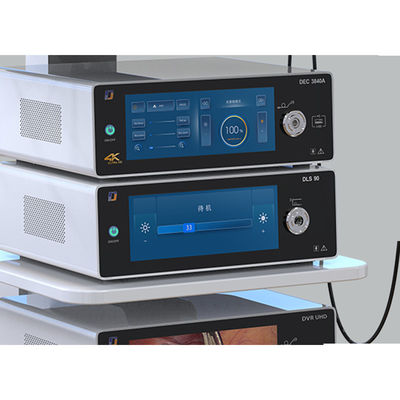

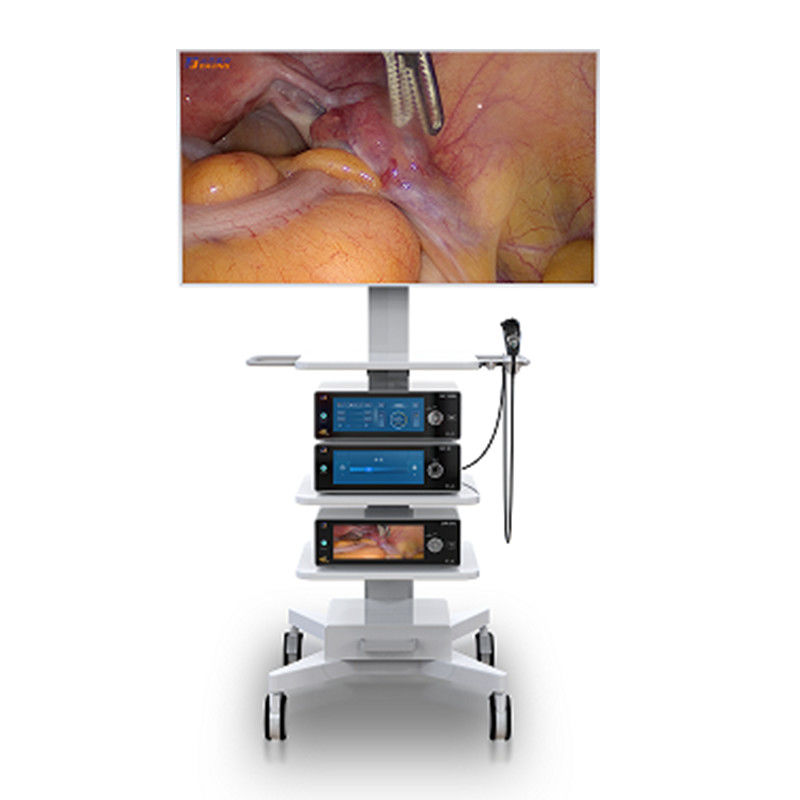

Ultra 4K Endoscope Camera System Tower DEC3840A for laparoscopic surgery
Ultra 4K endoscope camera system tower for laparoscopic surgery consists of an Laparoscope, a 4K image controller, a 4K camera head, an LED light source, an light guide cable, a 4K medical monitor 32” , a Trolley.
4K means a resolution of at least 3840 x 2160 pixels, four times that of the existing HD standard.
An abdominal laparoscopy can be done to check the abdomen and its organs for:
Tumors and other growths
Injuries
Bleeding inside the belly
Infections
Belly pain that can’t be explained
Blockages
Other conditions
A laparoscopy is often done when the results of a physical exam, X-ray, or CT scan are not clear.

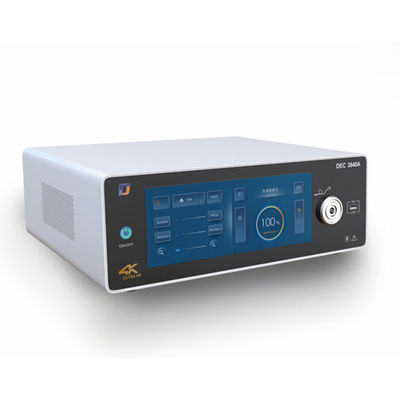

Ultra 4K Endoscope Camera System |
|
| Technical Data | |
|
Dispaly |
10 inch touched display screen |
|
Effective Pixels |
3840(H) x 2160(V) 60Hz |
|
Resolution |
1800TVL |
|
Lens Mount |
C-Mount |
|
Waterproof |
Camera Head IPX7 waterproof |
|
Output Signal
|
4k: HDMI2.0 ( 3840 X 2160P 60HZ ) |

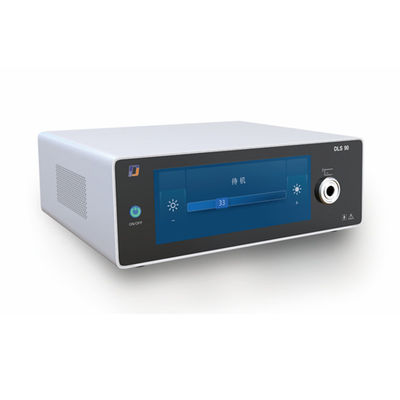

LED Light Source |
|
| Technical Data | |
|
Lamp |
90W |
|
Color Temperature |
5700K, natural light color temerature |
|
Illumination |
2000000LUX |
|
Lamp life |
≥20000 hours |
32 inch Monitor |
|
| Technical Data | |
|
Display Screen |
LED 32'' |
|
Resolution |
3840x2160 |
|
Brightness |
700cd/m² |
|
Contrast ratio |
1350:1 |
|
Visual angle |
178°(H)/178°(V) |
|
Format |
16:9 |
|
Video input |
DP/3*HDMI/VGA |
