Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Unit Cell Size: | 3.75 Umx3.75 Um |
|---|---|---|---|
| Effective Pixels: | 1920(H) X 1080(V) | Display Screen: | 5.0 Inch, Resolution 800 X 480 |
| Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording | Video Storage Format: | MP4 Format For H.264/H.265 ENCODING STORAGE |
| Waterproof: | Camera Head IPX7 Waterproof | Working Temperature: | 0℃〜+40℃ |
| Highlight: | 5.0 inch Full HD Endoscope Camera,CMOS Full HD Endoscope Camera,endoscope medical camera |
||

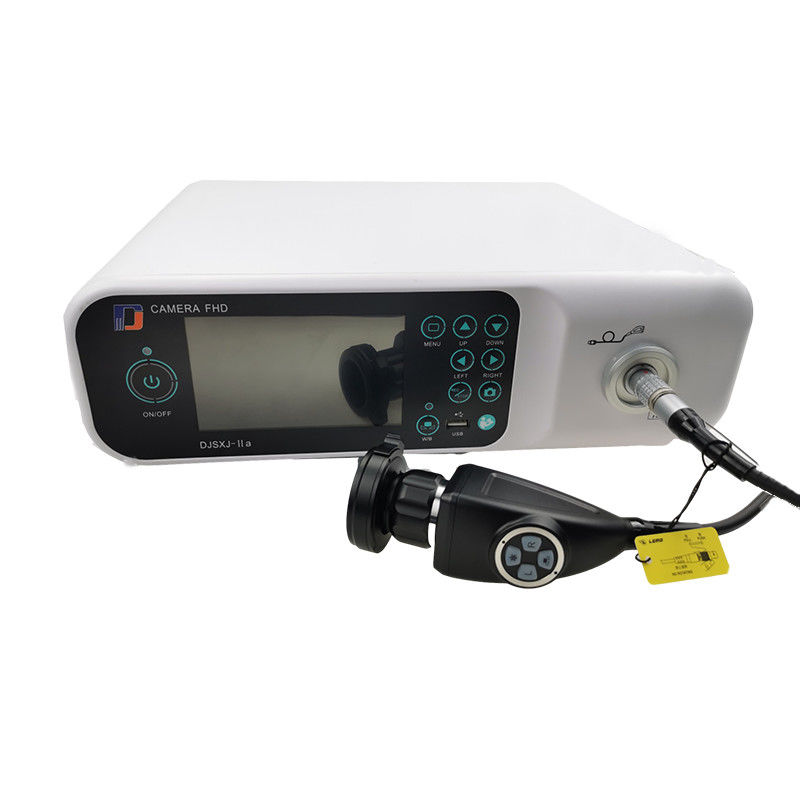

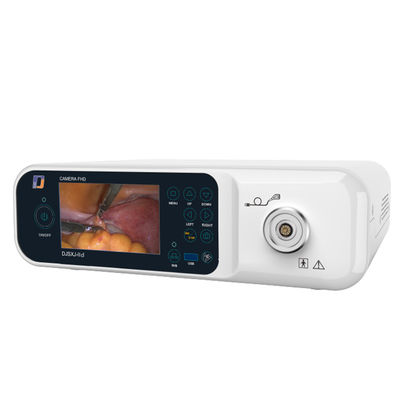

Medical Full HD Endoscope Camera System DJSXJ-IId
1080P Full HD Endoscope Camera with video recorder,
With USB storage and video recorder function.
It is convenience for doctor to store and review picture and video.
Max. 128G USB storage support.
The image resolution 1080P ( 1920 X 1080 ).
TFT LCD Screen 5inch.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Display screen | 5.0 inch, Resolution 800 x 480 |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Weight | 4kgs |
