Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Unit Cell Size: | 3.75 Umx3.75 Um |
|---|---|---|---|
| Effective Pixels: | 1920(H) X 1080(V) | Resolution: | 1000TVL |
| Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording | Video Storage Format: | MP4 Format For H.264/H.265 ENCODING STORAGE |
| Waterproof: | Camera Head IPX7 Waterproof | Transmission: | SMPTE 424M 3G-SDI, 75Ω |
| Highlight: | Full HD Portable Medical Endoscope,1000TVL Portable Medical Endoscope,Medical Endoscope Camera System |
||

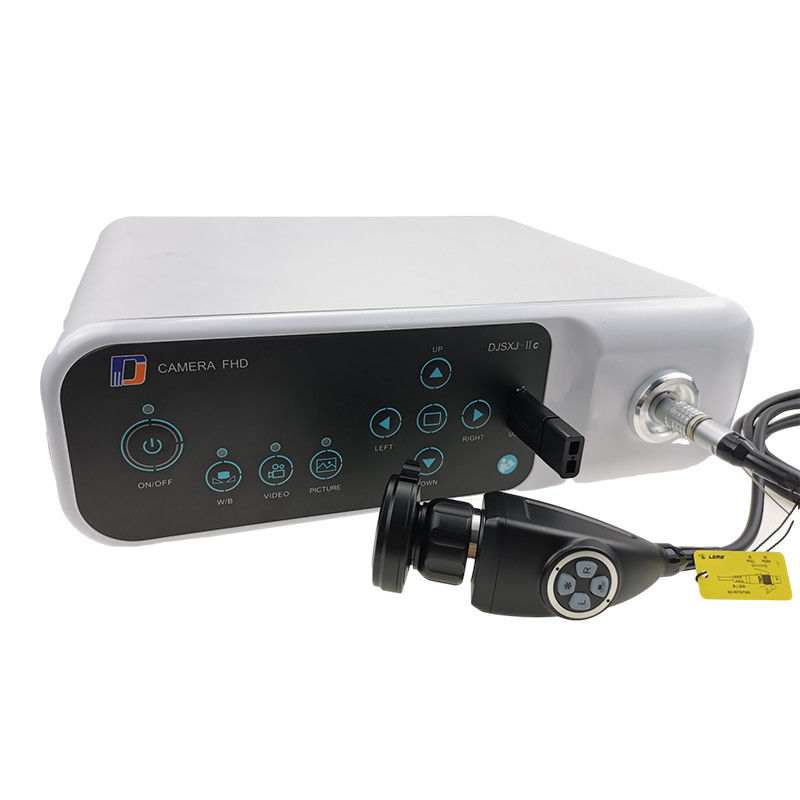

Medical Full HD Endoscope Camera System DJSXJ-IIc
Medical Full HD Endoscope Camera System can be used for ENT endoscope inspection and surgery, ventriculoscope, arthroscopy, thoracoscopy, laparoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, plastic surgery endoscope, ductoscopy, breast implant endoscope, fiber nasopharyngoscope, fiber choledochoscopy, fiber bronchoscope, fiber ureteroscope etc
Medical Full HD Endoscope Camera System with USB connector.
USB storage can be connected to .
Max support 256G USB storage.
1080p Full HD USB Endoscope camera resolution is 1980 x 1080.
It can be picture and capture video for endoscope inspection and surgery.
Controlled by the control unit and camera head.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Lens Mount | C-Mount |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4kgs |
