Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
|---|---|---|---|
| Resolution: | 1800TVL | Exposure: | Auto / Manual |
| Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording | Video Storage Format: | MP4 Format For H.264/H.265 ENCODING STORAGE |
| Touch Panel: | 10 Inches | Output Signal: | 4K: HDMI, 2K: HDMI, DVI |
| Highlight: | Medical surgical endoscope camera,1800TVL surgical endoscope camera,Endoscope 4k surgical camera |
||

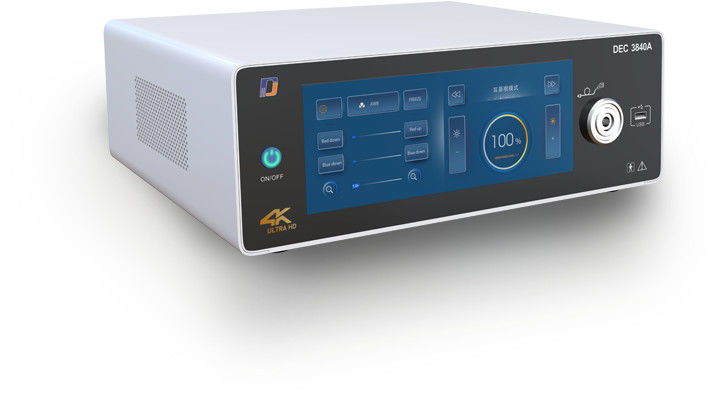

Medical 4K endoscope camera DEC3840B
4K endoscope system can give clinicians appear more exquisite endoscope image, strong processing chip to achieve more rich color gamut, the FPGA image processing algorithm can achieve better sharpening, brightness, noise reduction, contrast and extinction of function, more satisfy clinicians in complex surgical treatment and diagnosis of demand.
Dajing Medical taking image quality in endoscopy to a whole new level with sophisticated technology for pin sharp 4K resolution. The precisely coordinated system components guarantee realistic image reproduction. At the same time, the system is energy-efficient, ergonomic and compact. Intelligent processing algorithms, allow structures that are difficult to discern to be rendered more clearly.
4K means a resolution of 3840 x 2160 pixels, four times that of HD standard.
| Technical Data | |
| Dispaly | 10 inch |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 umx2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Photometry | Average, peak and area photometry |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Waterproof | Camera Head IPX7 waterproof |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
