Product Details:
|
| Touch Screen: | 10.2" | Color Gamut: | BT.2020 |
|---|---|---|---|
| Image Processing Chips: | Built-in 4 FPGA | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
| Exposure: | Auto/Manual | Output Signal: | 4K: HDMI, 12G SDI, 3G SDI*4; FHD: DVI, 3G SDI*1 |
| Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording | Power Supply: | AC100-240V 50/60 Hz |
| Highlight: | Endoscopic Camera Image System 4K,Ultra HD Medical Endoscope Camera,4K HD Medical Endoscope Camera |
||
Product Features
The 4K native sensor provides excellent video image quality.

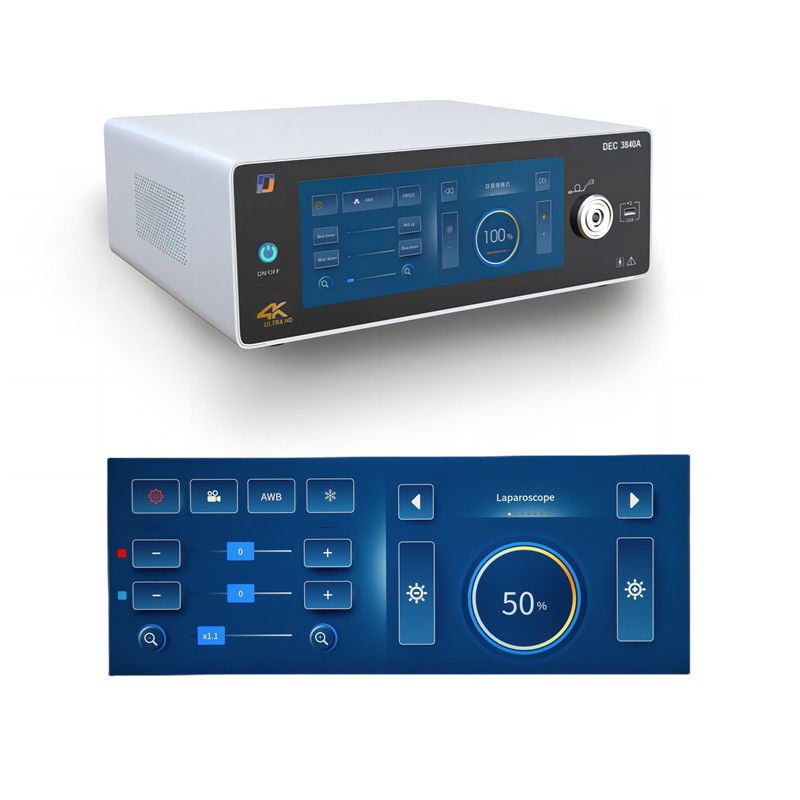

| DEC 3840A 4K Ultra HD Camera System | |
| Touch Screen | 10.2-inch |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Unit Cell Size | 2 umx2 um |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | 12G-SDI 75Ω |
| Output Signal | DVI,SDI-5: 1920(H)×1080(V); HDMI,SDI-1, SDI-2,SDI-3,SDI-4: 3840(H)×2160(V)and 1920(H)×1080(V)Dual-resolution output |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |

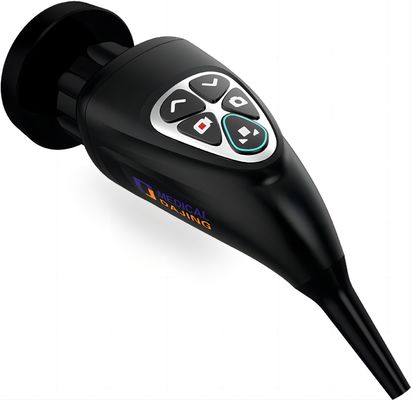

| size: | Handle: 32mm*32*mm*80mm Processor: 335mm*400mm*143mm |
| Power Supply | AC100-240V 50/60 HZ |
| weight | 11kg |
