Product Details:
|
| Image Sensor: | 1/1.9'' Sony IMX185 CMOS Sensor | Effective Pixels: | 1920(H) X 1080(V) |
|---|---|---|---|
| Resolution: | 1000TVL | White Balance: | Manual |
| Handle Button: | Picture, Video, White Balance | Illumination Ref.: | 3000K-8000K |
| Min.Sensitivity: | 20L × F1.4 | Weight: | 4kgs |
| High Light: | Micro Endoscope Camera System,Full HD Micro Endoscope Camera,Manual ENT Endoscope |
||

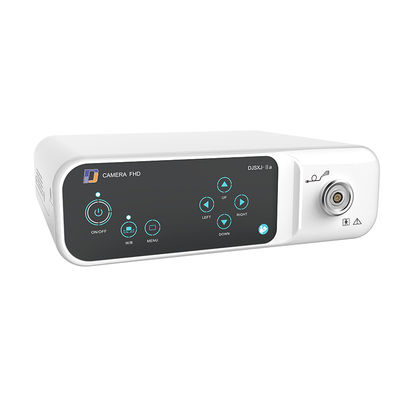

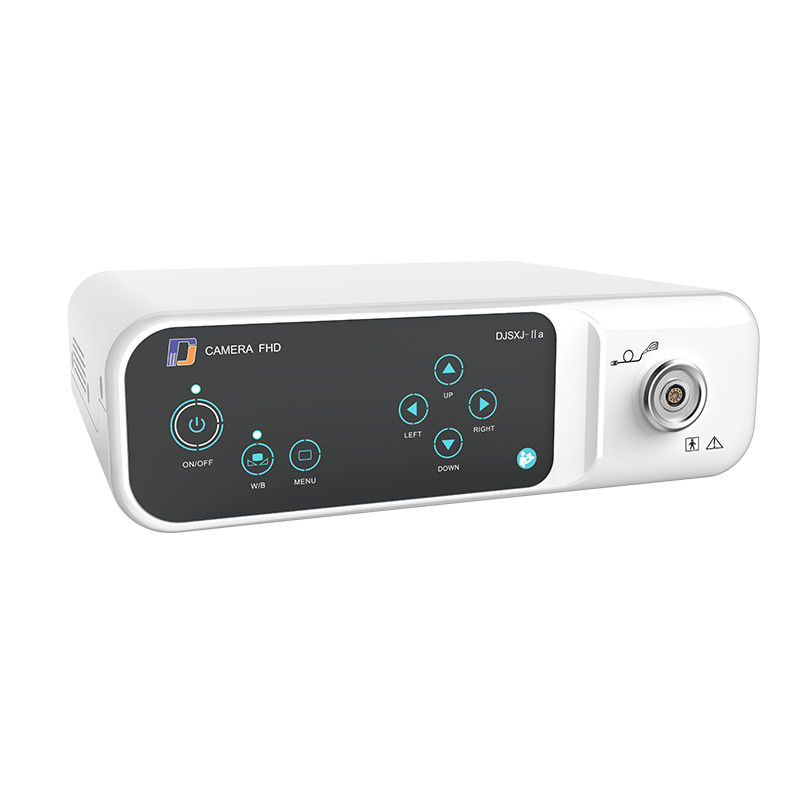

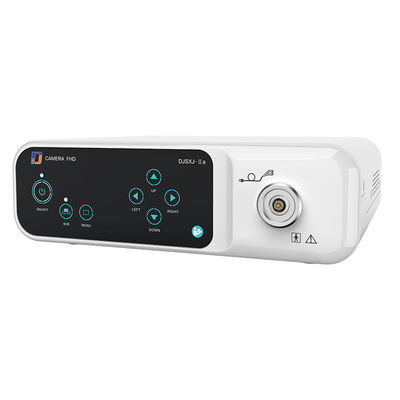

Full HD Endoscope Camera System for ENT DJSXJ-IIa
ENT Endoscope Camera images the observed lesions through the endoscopic camera system, transforms the optical signal into an electrical signal, and then, after signal processing and image processing, realizes a clear magnified image on the screen. With the assistance of the endoscope system, doctors can better detect the lesions occurring in the tissues being observed and provide patients with a visual and comprehensive understanding of the problems that exist within their bodies.
| Technical Data | |
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Image processing | Noise reduction algorithm(2D/3D), color density 30 levels(user adjustable), edge enhancement, contrast adjustment, image magnification(16 times digital magnification) blood vessel enhancement, anti-fog function, strong light suppression |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4kgs |
