Product Details:
|
| USB Output Resolution: | MJPG:1280X720,640X480,640X360 YUY2:1280X720,640X480,640X360 | Power Input: | USB 5V±10% |
|---|---|---|---|
| Power Consumption: | 130 MA | Sensor Type: | 1/9'' 720 CMOS Image Sensor |
| Active Pixels: | Default: 1280x720 | Max.Frame Rate: | 720P 30fps |
| Interface: | Compliant To USB Video Class/USB2.0 High Speed | Light Source: | 6 Pcs LED |
| Highlight: | Mini Endoscope Camera Module,USB Endoscope Camera Module,720P Endoscope Camera Module |
||

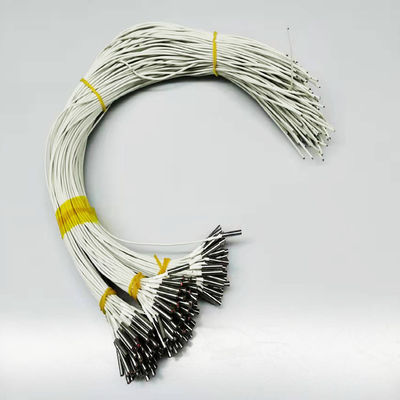

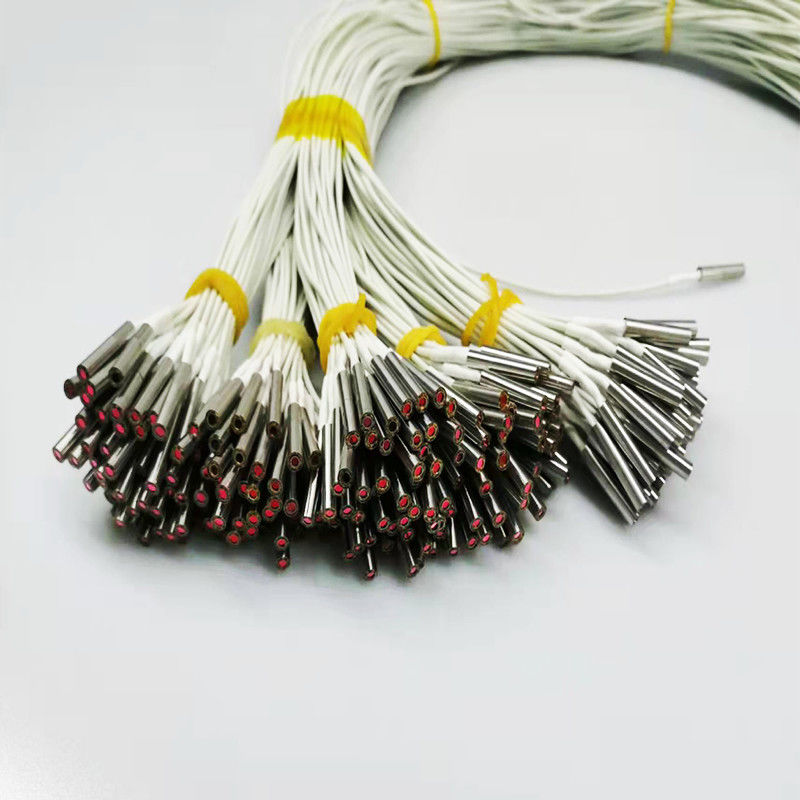

3.9mm Cmos 720P USB Mini Endoscope Camera Module for Medical Endoscopy
This is module for flexible endoscope.
| Technical Data | |
| USB Output Resolution | MJPG:1280X720,640X480,640X360 YUY2:1280X720,640X480,640X360 |
| Power input | USB 5V±10% |
| Power Consumption | 130 mA |
| Sensor Type | 1/9'' 720 CMOS Image Sensor |
| Active Pixels | Default:1280x720 |
| Max.Frame Rate | 720P 30fps |
| Interface | Compliant to USB Video Class/USB2.0 High Speed |
| White Balance | Auto/Manual |
| Light Source | 6 pcs LED |
| Depth of field(Fov) | 79.2° |
| Lens Construction | 4 Plastic + IR cut |
| Cable Length | 50 cm |
| Operating Temperature | (-10℃ to+60℃) |
| Water Resistance | IPX7 |
| Operating Humidity | 30%~80% Rh |
| Dimensions | Module 3.9mmx L20mm |
