Product Details:
|
| Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor | Effective Pixels: | 3840(H) X 2160(V) 60Hz |
|---|---|---|---|
| Resolution: | 1800TVL | Monitor: | 32 Inch Display Screen |
| Led Light Souce: | 90w | S/N: | >58dB |
| Image Gamma: | 0.45, 0.55, 0.65, 0.75 | Output Signal: | 4K: HDMI2.0 ( 3840 X 2160P 60Hz ) FHD: HDMI, LAN, DVI (1080P 60Hz ) |
| Highlight: | 90w Medical Endoscope Camera,1800TVL Medical Endoscope Camera,UHD Endoscope Camera System |
||

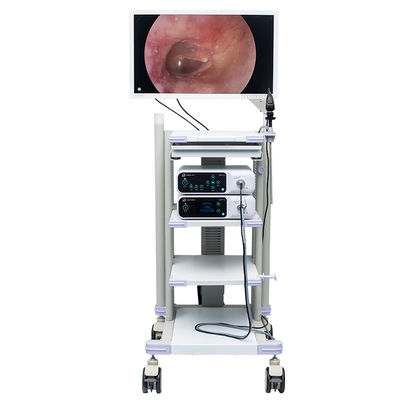

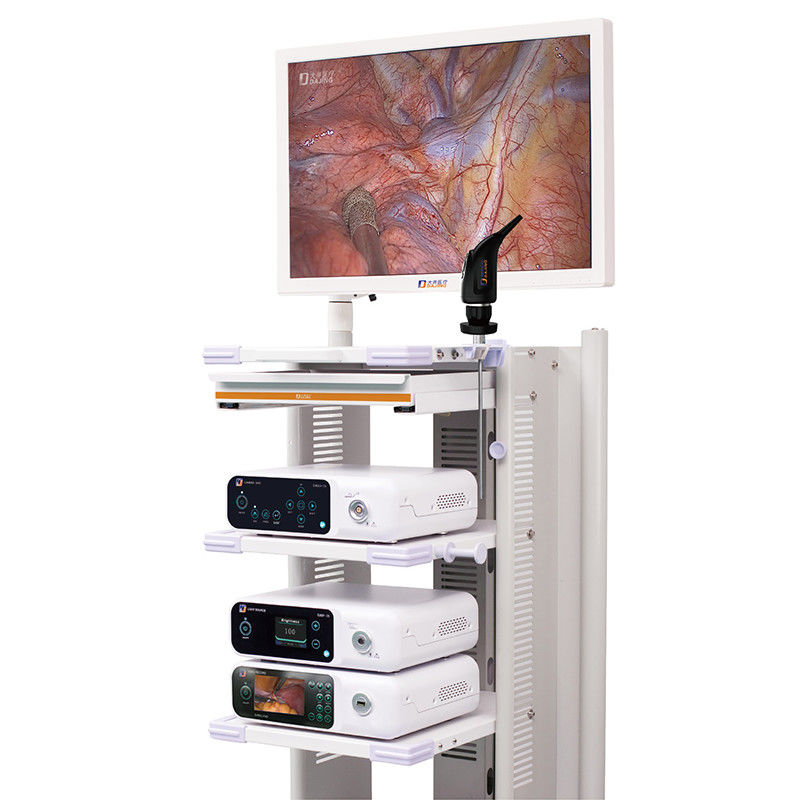

UHD 4K Endoscope Camera System Tower
UHD 4K Endoscope Camera Tower include UHD 4K Endoscope Camera, camera coupler, Cold Light Source 90W, Light cable, 32" Medical Monitor, Trolley.
The resolution of 4K Endoscopy camera is 3840 x 2160, it can present doctors with more excellent endoscopic images, and the ultra-high processing chip realized rich color gamut. FPGA image processing algorithms can achieve stronger noise reduction, sharpening, brightness, contrast and extinction functions, and better meet the needs of doctors in the diagnosis of complex surgical treatment. 4K ultra image processing chip technology. 50000 hours long working life of 90W light source. 55inch 4K Ultra HD Multi-display allows doctor and nurse to see the real time operation live.
Ultra 4K Endoscope Camera System |
|
| Technical Data | |
|
Effective Pixels |
3840(H) x 2160(V) 60Hz |
|
Resolution |
1800TVL |
|
Lens Mount |
C-Mount |
|
Waterproof |
Camera Head IPX7 waterproof |
|
Output Signal
|
4k: HDMI2.0 ( 3840 X 2160P 60HZ ) |
LED Light Source |
|
| Technical Data | |
|
Lamp |
90W |
|
Color Temperature |
5700K, natural light color temerature |
|
Illumination |
2000000LUX |
|
Lamp life |
≥20000 hours |
32 inch Monitor |
|
| Technical Data | |
|
Display Screen |
LED 32'' |
|
Resolution |
3840x2160 |
|
Brightness |
700cd/m² |
|
Contrast ratio |
1350:1 |
|
Visual angle |
178°(H)/178°(V) |
|
Format |
16:9 |
|
Video input |
DP/3*HDMI/VGA |
