Product Details:
|
| Dispaly: | 10 Inch Touched Display Screen | Image Sensor: | 1/1.8'' Sony IMX334 CMOS Sensor |
|---|---|---|---|
| Effective Pixels: | 3840(H) X 2160(V) 60Hz | Lens Mount: | C-Mount |
| Recording Function: | Support U Disk Or Mobile Hard Disk For 1080P Recording | Waterproof: | Camera Head IPX7 Waterproof |
| White Balance: | Manual | Output Signal(B): | 4K: HDMI, 2K: HDMI, DVI |
| Highlight: | UHD Laparoscopic Camera System,Intestinal Laparoscopic Camera System,60Hz surgical camera system |
||

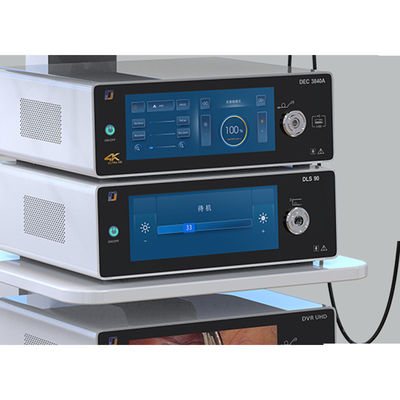

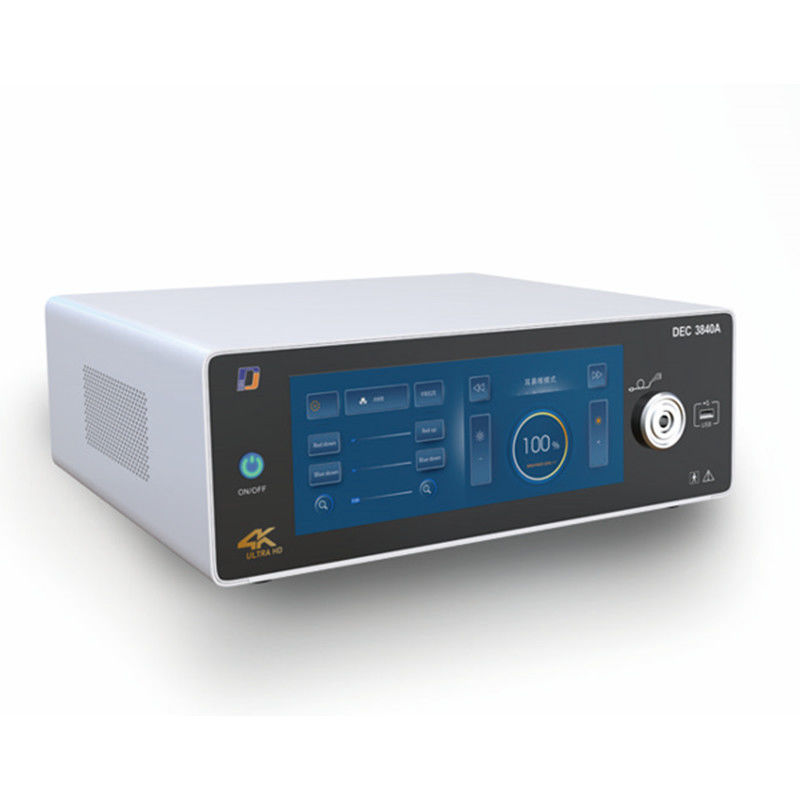

UHD Laparoscopic Camera System DEC3840B for intestinal surgery
Most intestinal surgeries can be performed using the laparoscopic technique.
These include surgery for Crohn’s disease, ulcerative colitis, diverticulitis, cancer, rectal prolapse and severe constipation.
| Technical Data | |
| Dispaly | 10 inch |
| Image Sensor | 1/1.8'' Sony IMX334 CMOS Sensor |
| Effective Pixels | 3840(H) x 2160(V) 60Hz |
| Resolution | 1800TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto / Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50 - 1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k - 8000k |
| Min.Sensitivity | 20Lx F1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | 12G-SDI 75Ω |
| Output Signal | 4k: HDMI2.0(3840X2160P 60HZ) FHD: HDMI, LAN, DVI(1080P 60HZ) |
| Recording function | Support U disk or mobile hard disk for 1080P recording |
| Video storage format | MP4 format for H.264 / H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese, English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~ +40℃ |
| Power Supply | AC100-240V 50/60 HZ |
