Product Details:
|
| Screen: | 10'' TFT LCD Screen | Lamp: | 120w |
|---|---|---|---|
| Color Temperature: | 5600K, Natural Light Color Temerature | Illumination: | 1100000LUX |
| Lamp Life: | ≥20000 Hours | Operation Mode: | Touch Button, The Life Span Reaches 100,000 Times |
| Light Transmitting Bundle: | 3m | Power Supply: | AC100-240V 50/60 Hz |
| Highlight: | Medical LED Surgical Light Source,Endoscope LED Surgical Light Source,led light source for endoscope |
||

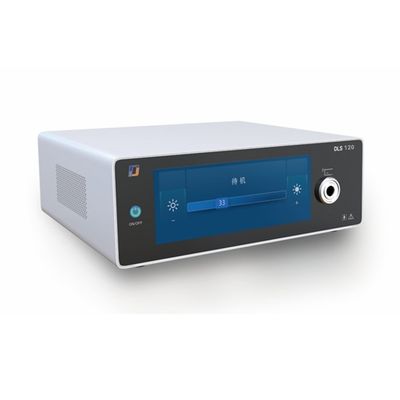

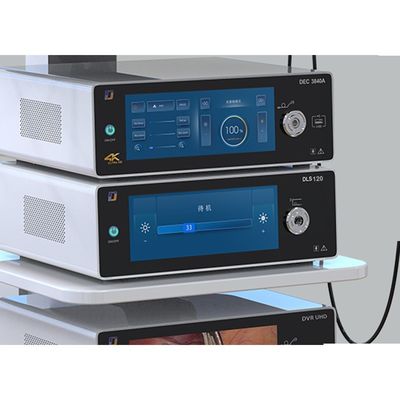

Medical LED Light source for ultra 4K endoscope camera system DLS 120
Both rigid and flexible optical endoscopes require an external light source to illuminate the area that needs to be examined.
LED light sources are connected to an endoscope body through adapters or couplers.
The light travels from the light source to the endoscope through specially designed light guides cable.
To provide high intensity light to exam the gastrointestinal,abdominal cavity etc.
| Technical Data | |
| Screen | 10'' TFT LCD Screen |
| Lamp | 120w |
| Color Temperature | 5600K, natural light color temerature |
| Display Index | RA≥92 |
| Illumination | 1100000LUX |
| Lamp life | ≥20000 hours |
| Light system | Integrated light cone cincentrating system, uniform light spot |
| Heat dissipation structure | Heat pipe cooling system, temperature of device is controlled under 41 degrees |
| Application | Use with endoscope camera system |
| Operation mode | Touch button, the life span reaches 100,000 times |
| Memory function | Record the brightness of the last user, cumulatively record the working time of the bulb |
| Protection function | Bulb life alarm, fan abnormal alarm, over temperature protection |
| Power Supply | AC100-240V 50/60 Hz |
